What Wiring and First-Fix Do You Need Before a Smart Home Install?

The Question Every Homeowner Asks First

Before a homeowner ever chooses between Control4 and Crestron, before they debate Lutron versus KNX keypads, before they even book a showroom demonstration — they ask a more fundamental question. Do I need to rewire? The answer determines budget, timeline, disruption level and whether the project proceeds at all. It is the gateway question, and it deserves an honest, technically accurate answer.

At Vertex AV we are NICEIC-approved electrical contractors as well as certified smart home installers. This dual competency matters because smart home installation is electrical work. The dimmers, relays, processors and motor controllers we install are mains-connected devices that must comply with BS 7671, the British Standard for electrical installations. We hold both the smart home manufacturer certifications and the electrical qualifications that allow us to design, install and certify the complete system — not just the glamorous touchscreen interfaces, but the cabling, consumer units and circuit testing that make everything safe and legal.

This article explains what wiring you actually need before a smart home can be installed, whether rewiring is necessary, how first-fix preparation should be coordinated with your builder, and what to look for in an installer who genuinely understands the electrical as well as the smart. It is written for homeowners in London, Hertfordshire, Surrey and beyond who are planning a renovation, extension or new build and want to get the infrastructure right before the plaster goes on.

Do You Need to Rewire for Smart Lighting?

The short answer is usually no. Modern smart lighting platforms are specifically designed to work with existing UK wiring. Lutron RadioRA 3 dimmers fit standard UK back boxes and operate on the existing two-wire plus earth configuration found in virtually every home built since the 1960s. Control4 wireless switches replace existing wall switches and communicate with the central processor via Zigbee mesh networking — no new cables required. Even KNX wired lighting, which uses a dedicated two-wire bus, can often be installed alongside existing mains wiring without a full rewire.

The exceptions are specific and diagnosable. Properties built before 1966 may lack an earth conductor at light switch positions. This is a safety issue under BS 7671 that must be remedied before any new electrical equipment is installed, smart or otherwise. Some older installations use shared neutral conductors — where the neutral for multiple circuits is combined in the switch wiring — which causes LED dimming instability and can damage smart dimmers. Aluminium cabling, found in some 1970s properties, requires special termination techniques and is generally incompatible with modern dimming modules without replacement.

A pre-installation electrical survey by a NICEIC-registered contractor identifies these issues before any smart home equipment is ordered. At Vertex AV, our survey includes a visual inspection of the consumer unit, circuit breaker ratings, earthing arrangements and switch wiring configuration. We test for neutral integrity, earth continuity and insulation resistance. In approximately 60% of the retrofit properties we assess, the existing installation is compliant and suitable with minor modifications — typically adding earth conductors or separating shared neutrals in specific locations. Only when the entire installation is genuinely aged, damaged or non-compliant do we recommend a full rewire.

What Cabling Should Run During First-Fix?

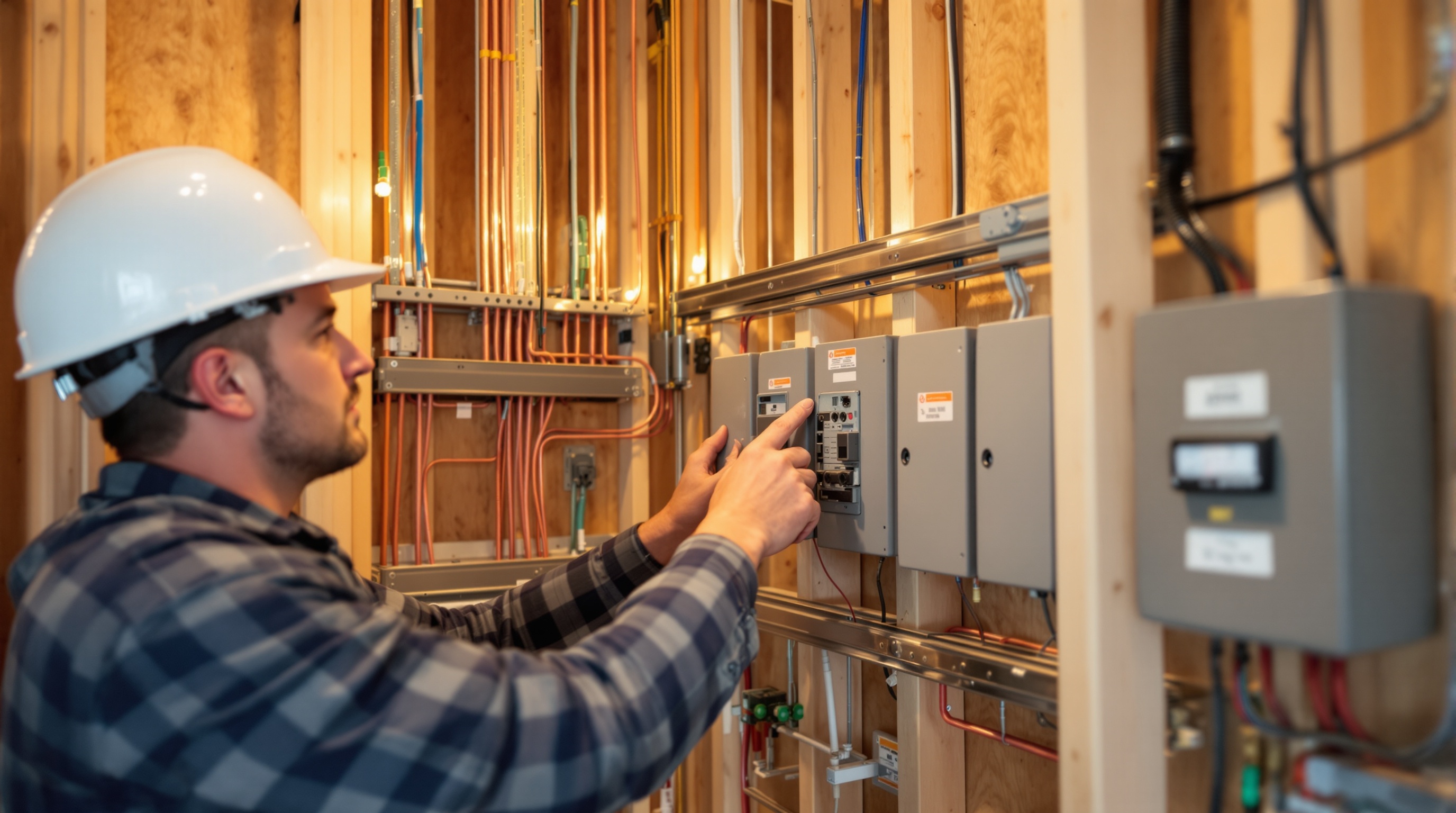

First-fix is the phase of construction where cables are installed within walls, floors and ceilings before plastering, boarding or decoration. It is the only opportunity to run cabling invisibly, and it must be planned with precision. The smart home installer and the electrical contractor must coordinate closely during this phase. At Vertex AV, we produce detailed cable route drawings — floor plans marked with every cable run, back box position and equipment location — that the electrical contractor follows during first-fix. These drawings are reviewed in a pre-start meeting with the builder, electrician and any other trades whose work intersects with ours.

For lighting control, run three-core plus earth cable (1.5mm²) from the distribution board to each switch position, and from each switch to its corresponding light fitting. This provides live, switched live, neutral and earth — the standard configuration for modern dimming systems. Lutron Homeworks and KNX lighting buses require additional low-voltage two-core cable alongside the mains wiring, running from the central processor or gateway to each lighting zone. Mark these routes clearly; mixing mains and extra-low-voltage cabling in the same conduit is permitted under BS 7671 but must be done with awareness of electromagnetic compatibility.

For multi-room audio, run two-core speaker cable (minimum 16 AWG / 1.5mm²) from a central equipment rack to every speaker position, even if you initially plan to use wireless speakers. Hardwired audio delivers superior sound quality, eliminates latency issues, and removes the dependency on wireless network congestion. For a Dolby Atmos home cinema, run speaker cable to every channel position — front left, centre, front right, surround left, surround right, rear left, rear right, and four ceiling speakers for Atmos height channels. Label every cable at both ends with permanent markers.

For networking, run CAT6a cable from a central patch panel to every room where a hardwired connection might conceivably be needed. This includes the main TV position, the study, any wireless access point mounting points, CCTV camera locations, and the smart home processor location. Even in an era of WiFi 6, hardwired connections remain the gold standard for reliability and bandwidth. A Control4 EA-5 processor or Crestron CP3N connected via CAT6a will never suffer the dropouts that can affect wireless connections. CAT6a supports 10 Gigabit Ethernet — sufficient for anything conceivable in the next two decades.

For motorised shading, run three-core flex (0.75mm²) from a local fused connection unit to each blind or curtain motor position. Somfy, Lutron and Silent Gliss motors all require permanent mains feeds with local isolation switches. For security systems, run CAT6 to every CCTV camera position and two-core alarm cable (minimum 0.5mm²) to every sensor, keypad and siren location. PIR sensors, door contacts, glass-break detectors and external beams all communicate over dedicated alarm cabling that is separate from the data network.

Timing: When to Engage Your Smart Home Installer

The most common and costly mistake we encounter is homeowners engaging their smart home installer after the electrical first-fix is complete. By then, the opportunity to run cabling invisibly has passed. The walls are plastered, the floors are screeded, and any additional wiring requires chasing, dust, disruption and redecoration. We have been called to properties in Kensington where the electrical contractor has installed 16mm back boxes — standard for conventional switches but entirely inadequate for smart dimmers. We have found properties in St Albans where the builder has closed the ceilings before speaker cables were run, leaving no route to the surround positions. These situations are entirely preventable.

Engage your smart home installer at the same time as your electrical contractor — ideally before either begins work. At Vertex AV, we attend site during the framing and boarding phase to mark out every control position, equipment location and cable route. We produce drawings that show the builder where to leave service voids, the electrician where to run cables, and the plasterer which areas to avoid. This coordination is particularly critical in open-plan properties where lighting zones, audio coverage and wireless access points must be positioned with reference to the final furniture layout — which may not yet be decided.

The correct sequence is: architectural design complete, interior design concept approved, smart home specification agreed, electrical first-fix begins with smart home cable routes integrated, plastering and decoration follows, second-fix installation of devices and commissioning occurs after decoration is substantially complete. Rushing to second-fix before decoration is finished results in damage to expensive equipment and finishes. We have seen Crestron touchscreens scratched by plasterers, Lutron keypads paint-splattered by decorators, and motorised blinds installed before the windows are clean. Patience in the programme pays dividends in the result.

Back Boxes, Depth and Positioning

Standard UK back boxes come in 16mm, 25mm and 35mm depths. For smart home installations, we specify 35mm minimum at every switch, dimmer and keypad position. Smart devices contain significantly more electronics than conventional switches — RF modules, processors, LED drivers and terminal blocks — and require space for both the device and the wiring behind it. A Lutron RA3 dimmer has a Clear Connect radio, phase-adaptive circuitry and multiple terminals that extend 25mm behind the faceplate. A Control4 wireless switch has a Zigbee antenna and relay module. A KNX keypad with LED indicators and temperature sensing is similarly deep.

A 16mm box is almost always insufficient. The device either protrudes from the wall — unsightly and insecure — or must be forced into place, risking damage to the internal electronics. A 25mm box is adequate for single-gang positions but becomes tight for double-gang or triple-gang locations where multiple dimmers share the same box. The 35mm depth provides comfortable space for terminals, wire loops and future modifications. It costs nothing extra during first-fix and prevents expensive remedial work later. At TV positions, we specify 47mm boxes to accommodate HDMI faceplates, network outlets and power together.

Positioning matters as much as depth. Smart home controls should be located where people naturally reach for them — beside door frames, at the top and bottom of staircases, by the bedside. They should align with architectural features: door frames, window reveals, panel mouldings. In a Chelsea townhouse where the interior designer has specified symmetrical wall panelling, a keypad positioned even 50mm off-centre is visibly wrong. We mark every position on the wall before boarding, photograph the markings, and verify alignment during second-fix. This attention to positioning is what separates a professional installation from an amateur one.

BS 7671, Part P and Why Certification Matters

BS 7671 is the British Standard for electrical installations, commonly called the Wiring Regulations. It is not optional guidance — it is the standard against which all electrical work is assessed. Every smart home installation that involves mains-voltage devices must comply. This includes lighting dimmers, motor controllers, relay modules, power supplies and any equipment connected to the electrical distribution system. Compliance is not merely a technical nicety; it is a legal and safety requirement.

Part P of the Building Regulations requires that electrical installation work in dwellings be either carried out by a competent person registered with a government-approved scheme — such as NICEIC — or notified to the local building control department. A smart home installer who is not NICEIC-registered cannot legally certify their work. They cannot issue an Electrical Installation Certificate. They cannot provide the documentation that buildings insurers, mortgage lenders and property buyers require. If an uncertified installer modifies your electrics and a fire occurs, your insurance may be void and you may face criminal liability.

At Vertex AV, we are NICEIC-approved contractors. Every smart home installation we complete includes full BS 7671 certification: circuit testing for continuity, insulation resistance, polarity and RCD functionality; an Electrical Installation Certificate; and notification to building control where required. We also provide Electrical Installation Condition Reports (EICR) for properties where one is needed for sale, letting or insurance purposes. Our engineers carry calibrated test equipment and produce documentation that satisfies the most rigorous surveyor or insurer.

Beyond compliance, BS 7671 certification is a quality mark. It proves that the installation has been designed correctly, installed by qualified personnel, tested with calibrated instruments, and verified against an independent standard. When you are investing £50,000 or more in a smart home system, this documentation is as important as the equipment itself. It protects your investment, your safety and your legal position.
